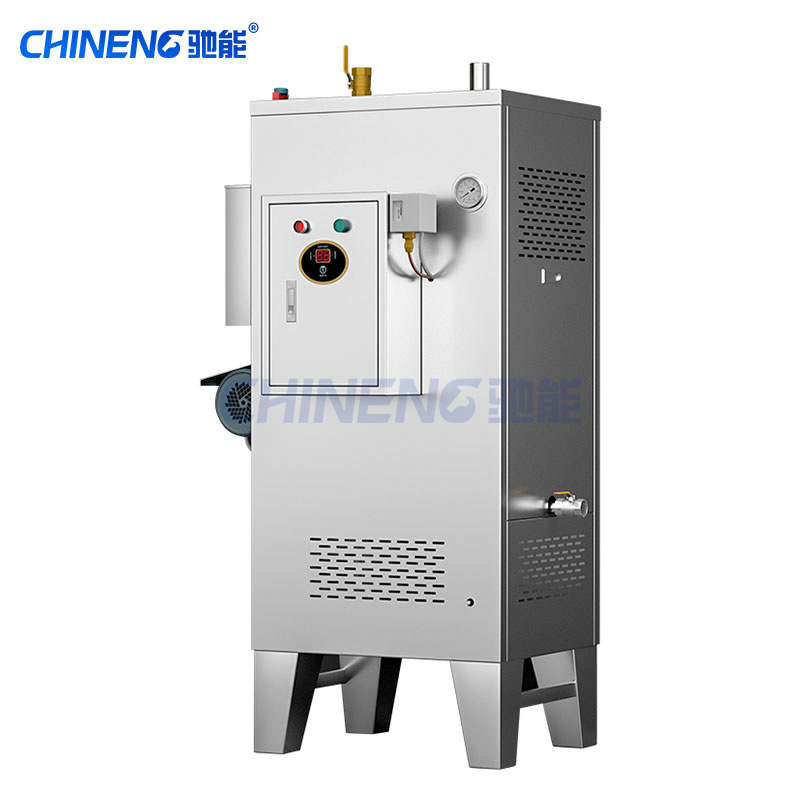

Vertical steam generator
Vertical steam generator
Vertical steam generator
Vertical steam generator
Vertical steam generator
Vertical steam generator
Vertical steam generator
Vertical steam generator
Vertical steam generator
Vertical steam generator

Vertical steam generator

CHINENG will optimize product specifications from time to time according to the market response, the parameters on the page may not be updated in time, so the specific parameters are subject to the real product, while the commercial kitchen equipment a wide variety of products did not appear on the page, if you have equipment needs or customized services, please add the following customer service wechat detailed consultation, we thank you for coming!
TikTok: Chineng Cooking utensil YouTube: 驰能商用厨具 WhatsApp: 8613528627820 Wechat: 13528627820
Details Product parameters After-sales service

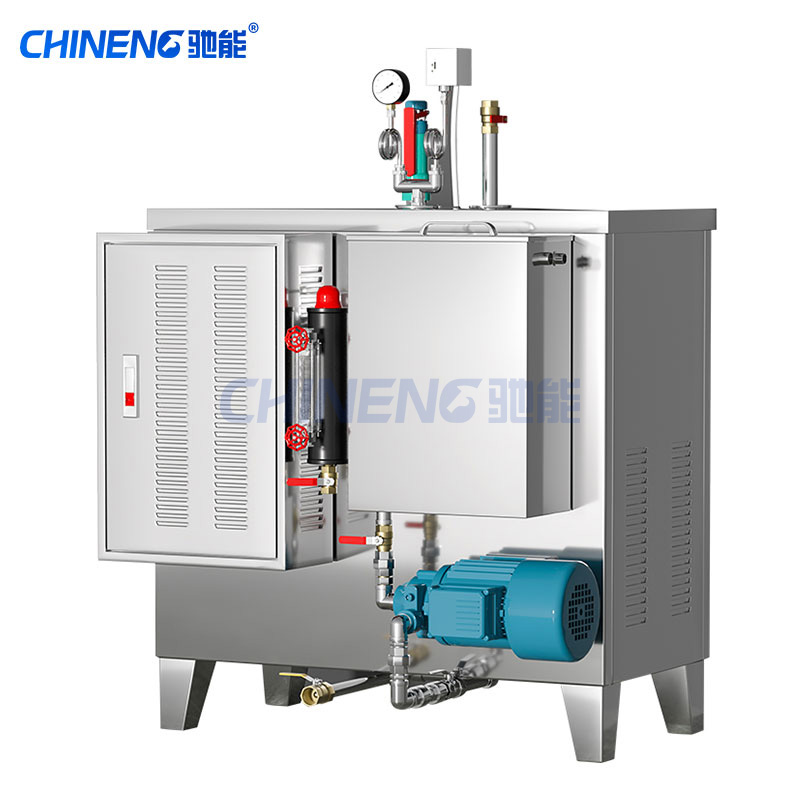

Vertical steam generator - Electric heating
CN-DC-LS-D-6
Product Name:Vertical - Electric -6kw
Voltage:220v/380v
Evaporation:9kg
Working pressure:0.4-0.7MPa
Saturation temperature:151-171℃
Specifications:720*520*980mm


CN-DC-LS-D-9
Product Name:Vertical - Electric -9kw
Voltage:220v/380v
Evaporation:13.5kg
Working pressure:0.4-0.7MPa
Saturation temperature:151-171℃
Specifications:720*520*980mm


CN-DC-LS-D-12
Product Name:Vertical - Electric model -12kw
Voltage:380v
Evaporation:18kg
Working pressure:0.4-0.7MPa
Saturation temperature:171℃
Specifications:720*550*980mm


CN-DC-LS-D-18
Product Name:Vertical - Electric -18kw
Voltage:380v
Evaporation:27kg
Working pressure:0.4-0.7MPa
Saturation temperature:151-171℃
Specifications:720*550*980mm


CN-DC-LS-D-24
Product Name:Vertical - Electric -24kw
Voltage:380v
Evaporation:36kg
Working pressure:0.4-0.7MPa
Saturation temperature:151-171℃
Specifications:870*580*1160mm


CN-DC-LS-D-36
Product Name:Vertical - Electric model -36kw
Voltage:380v
Evaporation:54kg
Working pressure:0.4-0.7MPa
Saturation temperature:151-171℃
Specifications:870*580*1160mm


CN-DC-LS-D-48
Product Name:Vertical - Electric -48kw
Voltage:380v
Evaporation:72kg
Working pressure:0.4-0.7MPa
Saturation temperature:151-171℃
specification：910*620*1020mm


CN-DC-LS-D-72
Product Name:Vertical - Electric -72kw
Voltage:380v
Evaporation:108kg
Working pressure:0.4-0.7MPa
Saturation temperature:151-171℃
Specifications:910*620*1020mm


CN-DC-LS-D-108
Product Name:Vertical - Electric model -108kw
Voltage:380v
Evaporation:162kg
Working pressure:0.4-0.7MPa
Saturation temperature:151-171℃
Specifications:1120*680*1220mm


Vertical steam generator - Gas model
CN-DC-B-RZQ-60T (Natural Gas) CN-DC-B-RZQ-60y (Liquefied Gas)
Product Name:Vertical - Gas model -60
Gas consumption (LPG/Natural gas) :3.6kg/4.1m³
Evaporation:60kg
Working pressure:0.4MPa
Saturation temperature:150℃
Specifications:620*680*1550mm


CN-DC-B-RZQ-80T (Natural Gas)CN-DC-B-RZQ-80Y (Liquefied Gas)
Product Name:Vertical - Gas -80
Gas consumption (LPG/Natural gas) :4.8kg/5.3m³
Evaporation:80kg
Working pressure:0.4MPa
Saturation temperature:150℃
Specifications:740*680*1550mm


CN-DC-B-RZQ-100T (Natural Gas) CN-DC-B-RZQ-100Y (Liquefied Gas)
Product Name:Product Name:
Gas consumption (LPG/Natural gas) :6.0kg/6.9m³
Evaporation:100kg
Working pressure:0.4MPa
Saturation temperature:150℃
Specifications:820*680*1550mm
