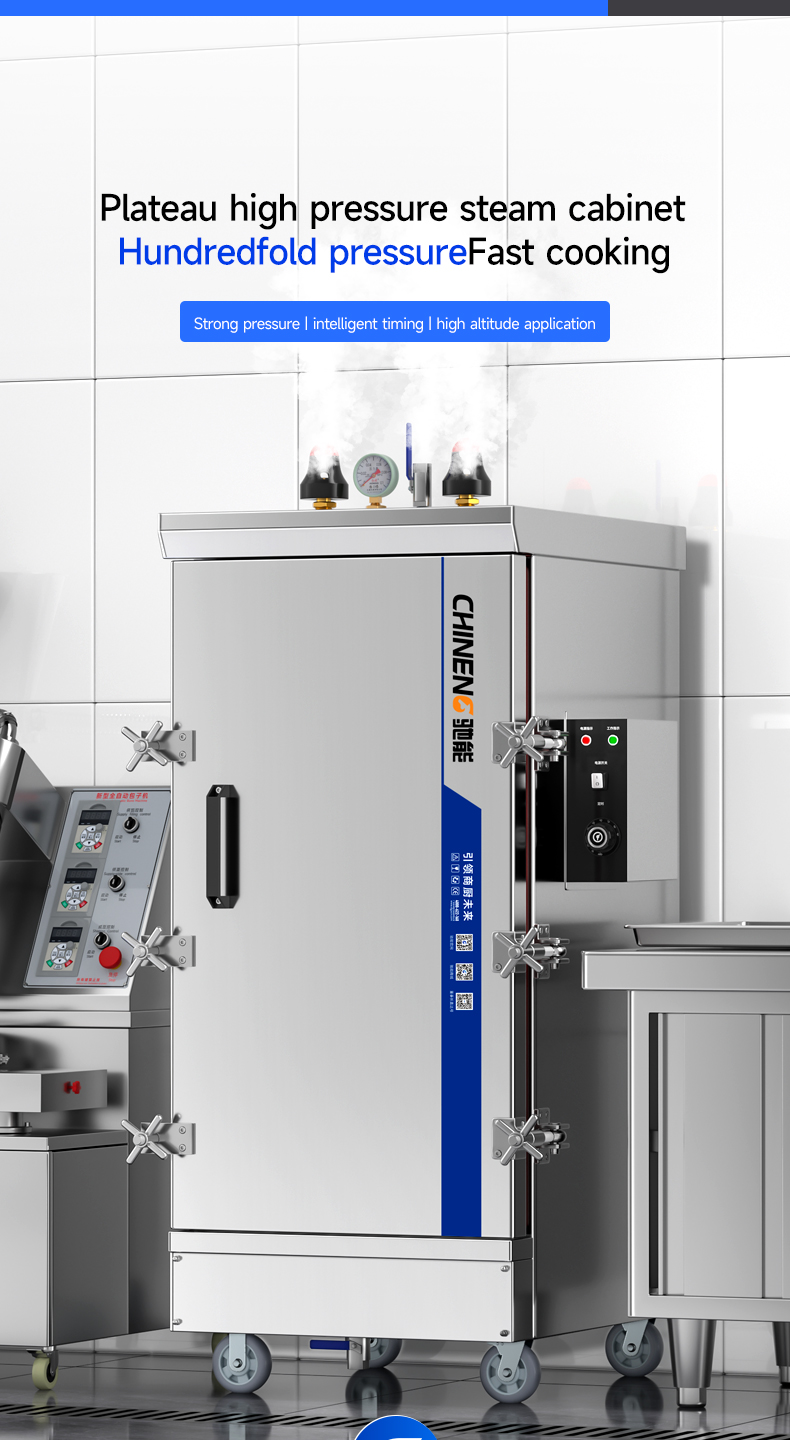

Plateau steamer
Plateau steamer

Plateau steamer

CHINENG will optimize product specifications from time to time according to the market response, the parameters on the page may not be updated in time, so the specific parameters are subject to the real product, while the commercial kitchen equipment a wide variety of products did not appear on the page, if you have equipment needs or customized services, please add the following customer service wechat detailed consultation, we thank you for coming!
TikTok: Chineng Cooking utensil YouTube: 驰能商用厨具 WhatsApp: 8613528627820 Wechat: 13528627820
Details Product parameters After-sales service



CN-8002-GYJ-6
Voltage /power：220v/8kw
Size:660*850*1085mm
No. of discs:Six discs
Liner size:402*650*690mm
Applicable number:120 to 150 people


CN-8002-GYJ-6-1
voltage/power：380v/9kw
Size:660*850*1085mm
No. of discs:Six discs
Liner size:402*650*690mm
Applicable number:120 to 150 people


CN-8002-GYJ-8
Voltage /power：220v/8kw
Size:660*850*1245mm
No. of discs:Eight discs
Liner size:402*650*850mm
Applicable number:150 to 200 people


CN-8002-GYJ-8-1
Voltage /power：380v/9kw
Size:660*850*1245mm
No. of discs:Eight discs
Liner size:402*650*850mm
Applicable number:150 to 200 people


CN-8002-GYJ-10
Voltage /power：380v/12kw
Size:660*850*1405mm
No. of discs:Ten discs
Liner size:402*650*1010mm
Applicable number:Applicable number:


CN-8002-GYJ-12
Voltage /power：380v/12kw
Size:660*850*1565mm
No. of discs:Twelve discs
Liner size:402*650*1170mm
Applicable number:250 to 300 people


CN-8002-GYJ-20
Voltage /power：380v/24kw
Size:1370*850*1400mm
No. of discs:Twenty discs
Liner size:402*650*1170mm double door
Applicable number:400 to 500 people


CN-8002-GYJ-24
Voltage /power：380v/24kw
Size:1370*850*1565mm
No. of discs:Twenty-four discs
Liner size:402*650*1170mm double door
Applicable number:500 to 600 people


CN-8002-GYJ-40
Voltage /power：380v/36kw
Size:1770*1040*1460mm
No. of discs:Forty discs
Liner size:802*850*1170mm double door
Applicable number:800 to 1000 people


CN-8002-GYJ-48
Voltage /power：380v/48kw
Size:1770*1050*1565mm
No. of discs:Forty-eight discs
Liner size:802*850*1170mm double door
Applicable number:1,000 to 1,200 people



CN-8010-GYD6
Voltage /power：380v/8kw
Size:（750）660*850*1015mm
No. of discs:Six discs
Liner size:400*650*500mm
Applicable number:120 to 150 people


CN-8010-GYD8
Voltage /power：380v/9kw
Size:（750）660*850*1175mm
No. of discs:Eight discs
Liner size:400*650*660mm
Applicable number:150 to 200 people


CN-8010-GYD10
Voltage /power：380v/12kw
Size:（750）660*850*1335mm
No. of discs:Ten discs
Liner size:400*650*820mm
Applicable number:200 to 250 people


CN-8010-GYD12
Voltage /power：380v/12kw
Size:（750）660*850*1495mm
Size:Twelve discs
Liner size:400*650*980mm
Applicable number:250 to 300 people


CN-8010-GYD20
Voltage /power：380v/24kw
Size:（1540）1370*850*1335mm
No. of discs:Twenty discs
Liner size:400*650*900mm double door
Applicable number:400 to 500 people


CN-8010-GYD24
Voltage /power：380v/24kw
power（1540）1370*850*1495mm
No. of discs:Twenty-four discs
Liner size:400*650*980mm double door
Applicable number:500 to 600 people


CN-8010-GYD36
Voltage /power：380v/36kw
Size:（1940）1870*1050*1255mm
No. of discs:Thirty-six discs
Liner size:400*1250*740mm double door
Applicable number:700 to 900 people


CN-8010-GYD48
Voltage /power：380v/48kw
Size:（1940）1870*1050*1495mm
No. of discs:Forty-eight discs
Liner size:400*1250*900mm double door
Applicable number:1,000 to 1,200 people


CN-8002-GYRX-6
Liquefied gas:1.3kg/h
Natural gas:1.7m³/h
Size:660*850*1160mm
No. of discs:Six discs
Liner size:402*650*690mm
Applicable number:120 to 150 people


CN-8002-GYRX-8
Liquefied gas:1.3kg/h
Natural gas:1.7m³/h
Natural gas:660*850*1420mm
No. of discs:Eight discs
Liner size:402*650*850mm
Applicable number:150-200 people


CN-8002-GYRX-10
Liquefied gas:1.5kg/h
Natural gas:2.0m³/h
Size:660*850*1580mm
No. of discs:Ten discs
Liner size:402*650*1010mm
Applicable number:200-250 people


CN-8002-GYRX-12
Liquefied gas:1.5kg/h
Natural gas:2.0m³/h
Size:660*850*1740mm
No. of discs:Twelve discs
Liner size:402*650*1170mm
Applicable number:250-300 people


CN-8002-GYRX-20
Liquefied gas:1.5kg/h
Natural gas:2.0m³/h
Size:1370*860*1650mm
No. of discs:Twenty discs
Twenty discs402*650*1170mm double door
Applicable number:400-500 people


CN-8002-GYRX-24
Liquefied gas:3.0kg/h
Natural gas:3.9m³/h
Size:1370*850*1740mm
No. of discs:Twenty-four disks
Liner size:402*650*1170mm double door
Applicable number:500-600 people


CN-8002-GYRX-40
Liquefied gas:3.0kg/h
Natural gas:3.9m³/h
Size:1770*1060*1650mm
No. of discs:Forty discs
Liner size:802*850*1170mm double door
Applicable number:800-1000 people


CN-8002-GYRX-48
Liquefied gas:3.0kg/h
Natural gas:3.9m³/h
Size:1770*1060*1740mm
No. of discs:Forty-eight discs
Liner size:802*850*1170mm double door
Applicable number:1000-1200 people


CN-8010-GY6/0.04
Voltage /power：380v/8kw
Size:670*880*1015mm
No. of discs:Six discs
Liner size:400*650*500mm
Applicable number:120 to 150 people


CN-8010-GY8/0.04
Voltage /power：380v/9kw
Size:670*880*1175mm
No. of discs:Eight discs
Liner size:400*650*660mm
Applicable number:150 to 200 people


CN-8010-GY10/0.04
Voltage /power：380v/12kw
Size:670*880*1335mm
No. of discs:Ten discs
Liner size:400*650*820mm
Applicable number:200 to 250 people


CN-8010-GY12/0.04
Voltage /power：380v/12kw
Size:670*880*1495mm
Size:Twelve discs
Liner size:400*650*980mm
Applicable number:250 to 300 people


CN-8010-GY20/0.04
Voltage /power：380v/24kw
Size:1380*880*1335mm
No. of discs:Twenty discs
Liner size:400*650*900mm double door
Applicable number:400 to 500 people


CN-8010-GY24/0.04
Voltage /power：380v/24kw
Size:1380*880*1495mm
No. of discs:Twenty-four discs
Liner size:400*650*980mm double door
Applicable number:500 to 600 people


CN-8010-GY36/0.04
Voltage /power：380v/36kw
Size:1780*1080*1255mm
No. of discs:Thirty-six discs
Liner size:400*1250*740mm double door
Applicable number:700 to 900 people


CN-8010-GY48/0.04
Voltage /power：380v/48kw
尺寸：1780*1080*1495mm
No. of discs:Forty-eight discs
Liner size:400*1250*900mm double door
Applicable number:1,000 to 1,200 people
